Selector Grabs

Power, Durability and Strength.

Selector Grabs are a popular tool for loading and sorting a wide variety of materials for recycling and an efficient tool when demolishing structures.

  • Resilience and robustness enhanced through the use of Hardox steel, and a guard plate to protect hoses and cylinder on SG150 through to SG5000 models.
  • All models are available with or without 360° rotation, which is powered by efficient and reliable Danfoss motors.
  • The solid perforated shells provide excellent visibility for operators.
  • Available for carriers from 0.7t – 50t.

Applications

  • Construction Site Handling: Precisely sort and move construction materials, such as rocks, timber, and scrap.
  • Demolition Debris Sorting: Efficiently separate and handle demolition debris for easier disposal and recycling, reducing cleanup time.
  • Waste Recycling: Accurately sort and load recyclable materials from mixed waste streams, enhancing material recovery rates.
  • Perfect for light demolition.
  • Buy
  • Demonstrate
  • Hire

Demolition & Selector Grabs Specifications

Model Unit SG80 SG150 SG300 SG350 SG1000 SG1500 SG2500 SG4000 SG4500 SG5000
Carrier t 0.7-1.2 1.2-3 3-7 6-10 10-15 14-22 18-26 24-30 25-37 30-50
Weight (with rotation) Kg 82 160 310 465 810 1055 1415 1505 1825 2685
Weight (non-rotation) Kg 40 102 190 320 560 780 1060 1160 1350 2100
Cylinder Bar 220 220 220 300 350 350 350 350 350 350
l/min 15 25 35 60 60 160 170 170 200 200
360° rotation Bar 120 120 120 160 160 160 160 160 160 160
l/min 5 10 10 15 25 25 30 30 30 35
Rots/min 10 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15
Force kN 6 15 20 24 30 35 50 50 80 90
Shell width (W) mm 300 450 500 700 800 800 1000 1200 1200 1360
Jaw opening (O) mm 600 750 1150 1550 1750 1950 2100 2100 2250 2250
Height (with rotation) mm 600 700 775 1020 1200 1300 1400 1400 1550 1565
Height (non-rotation) mm 370 500 600 680 775 950 1080 1080 1100 1220
Internal Height mm 190 280 320 380 450 520 630 630 550 650
Volume l 30 70 100 200 400 500 800 850 950 1100
Email/share/print this table – click to open PDF file)

Please fill in the form below to contact us

Please enable JavaScript in your browser to complete this form.
Name

Stronger Materials

Great Designs
Using quality parts

Up to 2 Years Warranty

On all products with
service agreement in place

Industry Knowledge

Many years of expertise
in excavator attachments

Available Parts

1000s of stocked parts
with product support

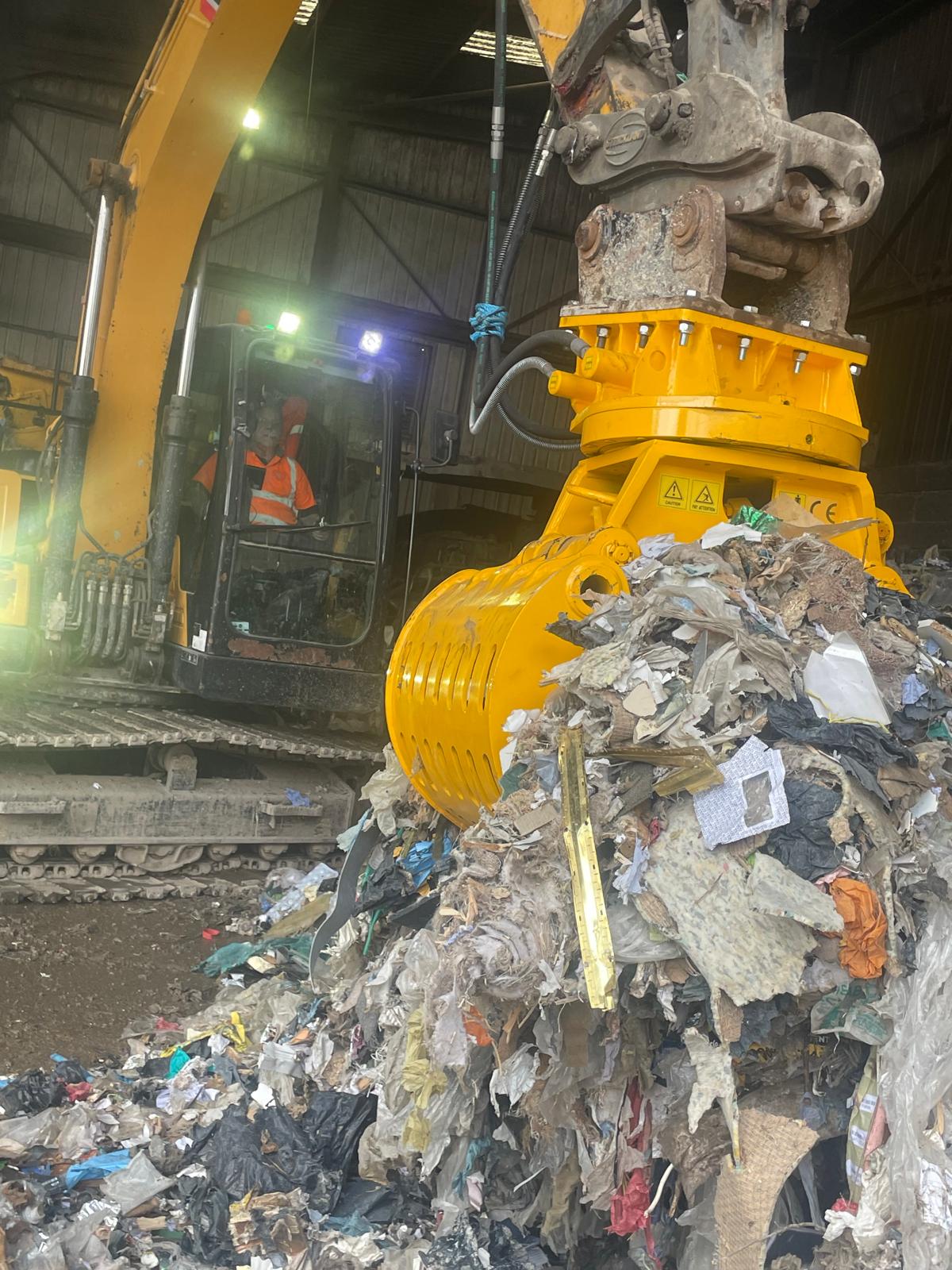

An OKB SG 1000 grab working in a waste transfer station
