concrete crackers
Power, Durability and Strength.
Hydraulic concrete crackers for primary demolition on carriers from 12T – 50T.
- 360° rotation for precision and control – This is to replace the first line under the pictures.
- reinforced cutter blade for rebar cutting.
- increased productivity resulting from the high-speed jaw opening and closing.
- wide jaw opening.
- twin rams for balance and almost constant cracking power.
- Hydraulic Rotation.
Applications
- Designed for primary demolition.
- Demolition using high reach machines.
- Wide jaw opening enables use on concrete pile demolition.
- Buy
- Demonstrate
- Hire

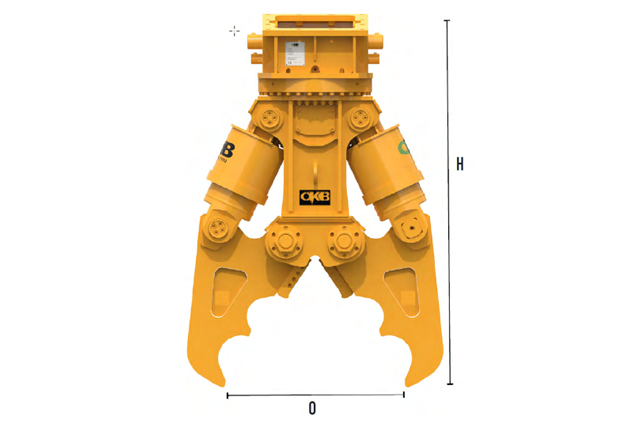

| Item | Unit | CR-1000 | CR-1500 | CR-2500 | CR-4000 |
| Excavator weight | T | 10-18 | 16-20 | 21-26 | 27-50 |
| Tool weight | KG | 1100 | 1600 | 2100 | 2800 |
| Tool Height | MM | 1800 | 2000 | 2300 | 2600 |
| Total Length (A) | MM | 1820 | 1980 | 2240 | 2600 |
| Jaw opening (B) | MM | 850 | 950 | 1110 | 1200 |
| Cutting Blade Length (C) | MM | 120 | 180 | 200 | 180 |
| Crushing Force (F1) | KN | 510 | 650 | 1075 | 840 |
| Crushing Force (F2) | KN | 820 | 970 | 1650 | 1368 |
| Max Operating Pressure | BAR | 280-320 | 280-320 | 280-320 | 280-320 |
| Oil Flow | L/MIN | 160-180 | 180-200 | 200-220 | 220-250 |
| Max Operating Pressure (Rot) | BAR | 120-170 | 120-170 | 120-170 | 120-170 |
| Oil Flow (Rot) | L/MIN | 18-25 | 35-50 | 35-50 | 35-50 |
