ROTATING AND STATIC PULVERISERS
Power, Durability and Strength.
Our rotating pulveriser is a universal tool designed for primary demolition, secondary concrete reduction and material processing. The static pulveriser is ideal for efficiently separating rebar from concrete in the secondary reduction stage.
- Designed to crush concrete, with the bonus of a steel shear incorporated in the rear of the jaws.
- Interchangeable wear parts for easy installation on site.
- Speed valve comes as standard (in both the rotating and static versions) enabling faster working and improved efficiency.
Applications
- Primary and secondary demolition.
- Concrete pulverising and recycling.
- Material processing and separation.
- Buy
- Demonstrate
- Hire
| Model | Unit | RM350 | RM1000 | RM2500 | RM4000 | RM4500 |
| Carrier | t | 5-12 | 10-16 | 16-22 | 24-35 | 36-50 |
| Weight | Kg | 565 | 1100 | 1680 | 2850 | 4100 |
| Max operating pressure | Bar | 300 | 350 | 350 | 350 | 350 |
| Oil Flow | l/min | 50-100 | 100-180 | 150-250 | 200-320 | 250-380 |
| 360° rotation | Bar | 140 | 160 | 160 | 160 | 160 |
| l/min | 25-30 | 25-30 | 30-35 | 30-35 | 30-35 | |

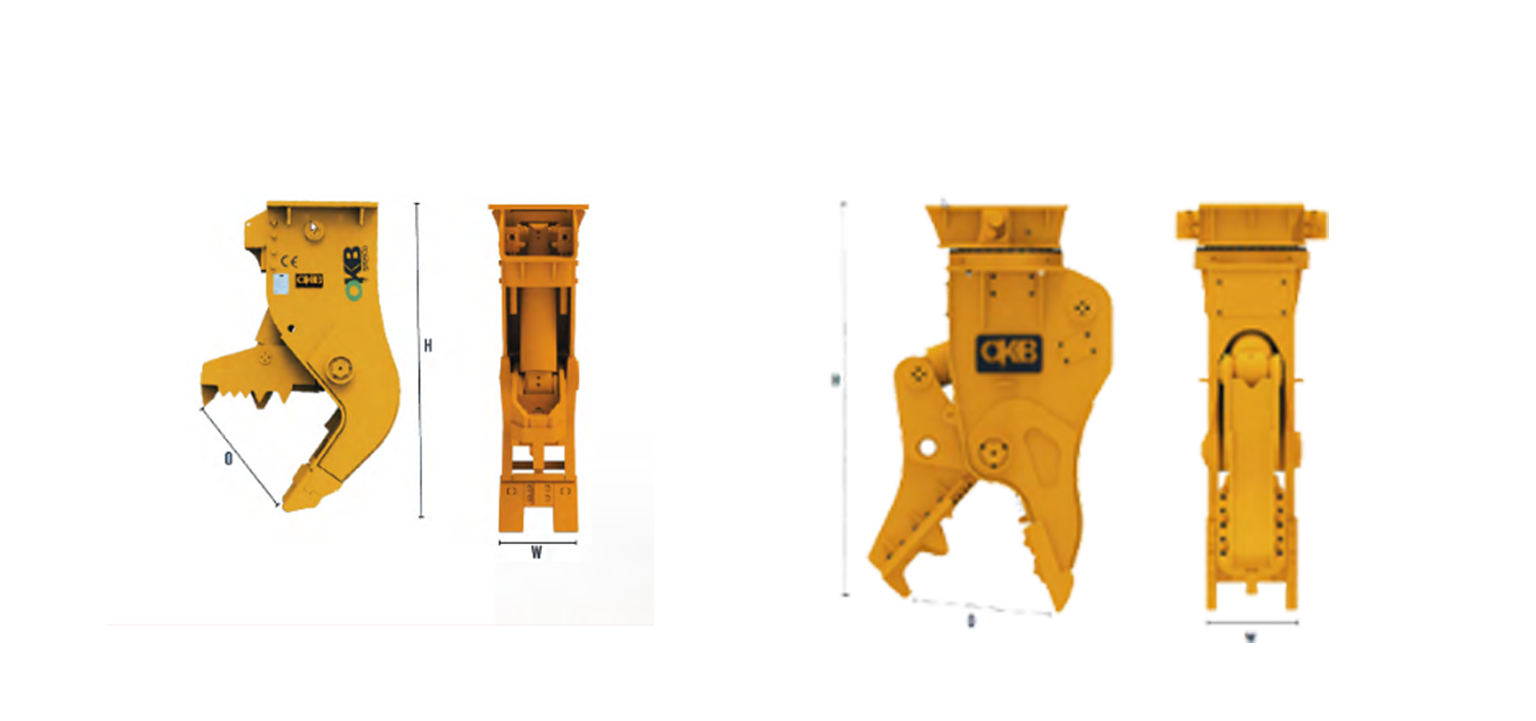

| Jaw opening (0) | mm | 500 | 700 | 780 | 1050 | 1160 |
| Force at upper tips | kN | 200 | 435 | 530 | 880 | 1000 |
| Force in the middle | kN | 330 | 645 | 810 | 1125 | 1610 |
| Cutting blade length | mm | 120 | 180 | 180 | 180 | 250 |
| Width (W) | mm | 280 | 410 | 485 | 550 | 630 |
| Height (H) | mm | 1690 | 1760 | 2190 | 2670 | 2950 |
| Model | Unit | SM350 | SM1000 | SM2500 | SM4000 |
| Carrier | t | 5-9 | 10-18 | 18-25 | 30-45 |
| Weight | Kg | 360 | 1010 | 1750 | 2700 |
| Oil Flow | l/min | 50-100 | 100-180 | 150-250 | 220-320 |
| Max operating pressure | Bar | 220 | 350 | 350 | 350 |
| Jaw opening (0) | mm | 500 | 700 | 860 | 1050 |
| Force at upper tips | kN | 200 | 400 | 480 | 876 |
| Force in the middle | kN | 330 | 580 | 720 | 1120 |
| Cutting blade length | mm | 120 | 180 | 180 | 180 |
| Width (W) | mm | 280 | 450 | 520 | 590 |
| Height (H) | mm | 1270 | 1760 | 2090 | 2690 |
