Timber Grabs

Power, Durability and Strength.

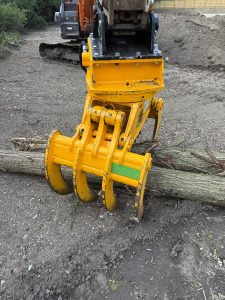

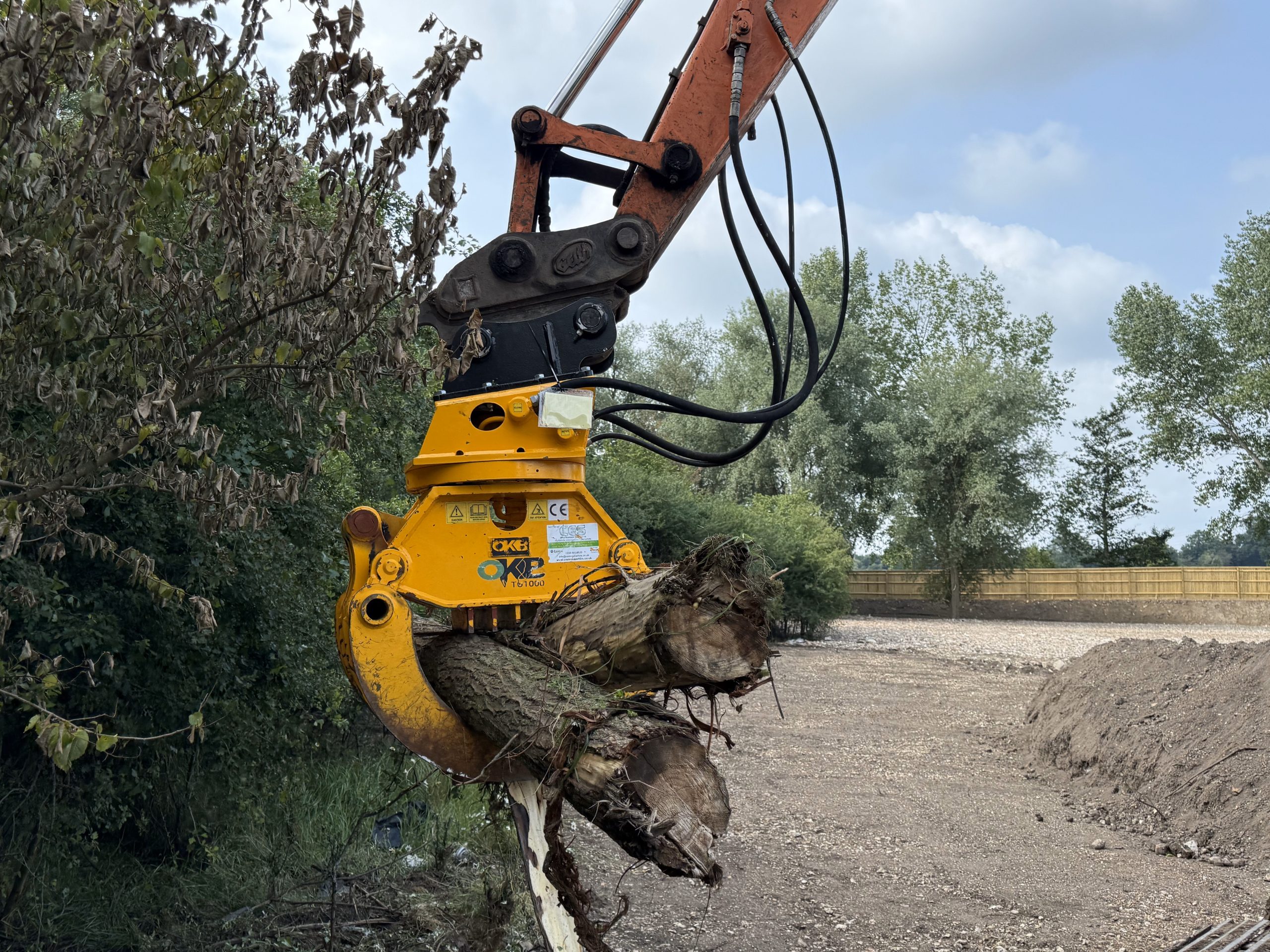

Timber grabs (also known as log grabs) are generally used for forestry work and land clearance including in the rail industries. Our scissor style log grabs close fully in on themselves with a high gripping force, securing the load before it is manoeuvred.

  • 360° rotation across the range allows optimal positioning and precise handling.
  • Wear-resistant Hardox 400 tines improve resilience and robustness.
  • The special cylinder design and equaliser structure minimise movement, resulting in negligible wear on the internal hoses.
  • The cylinders feature integrated cushion dampening, enabling controlled closure of the shells and preventing impact shocks to the excavator, as well as minimising the risk of damage to the grab’s main frame.

Applications

  • Forestry and logging: handling and moving logs and timber in processing operations.
  • Land clearance: Precisely sorting, moving and loading timber and logs.
  • Buy
  • Demonstrate
  • Hire

Timber Grab Specifications

Model Unit TG150 TG300 TG350 TG1000 TG1500 TG2500 TG4000 TG4500 TG5000
Carrier t 1.2-3 2.5-5 6-10 10-15 14-22 18-28 24-30 25-35 30-50
Weight Kg 160 330 510 900 1250 1700 1800 2100 3000
Operating pressure bar 220 220 300 350 350 350 350 350 350
Oil flow l/min 25 35 60 80 160 170 170 200 200
360° rotation bar 120 120 160 160 140 160 160 160 160
l/min 10 10 15 25 25 30 30 30 35
Rots/min 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15
Shell width (W1) mm 330 330 500 535 650 840 840 840 1100
Shell width (W2) mm 450 450 735 800 910 1230 1230 1230 1200
Jaw opening (O) mm 1100 1100 1550 2050 2050 2250 2250 2250 2850
Height (H) mm 700 730 1100 1200 1250 1500 1550 1550 1650
Lifting capacity Kg 300 500 1000 2000 2500 3000 4000 5000 6000
Min log diameter (E) mm Ø80 Ø80 Ø70 Ø100 Ø110 Ø200 Ø200 Ø200 Ø280
