Shears
Power, Durability and Strength.

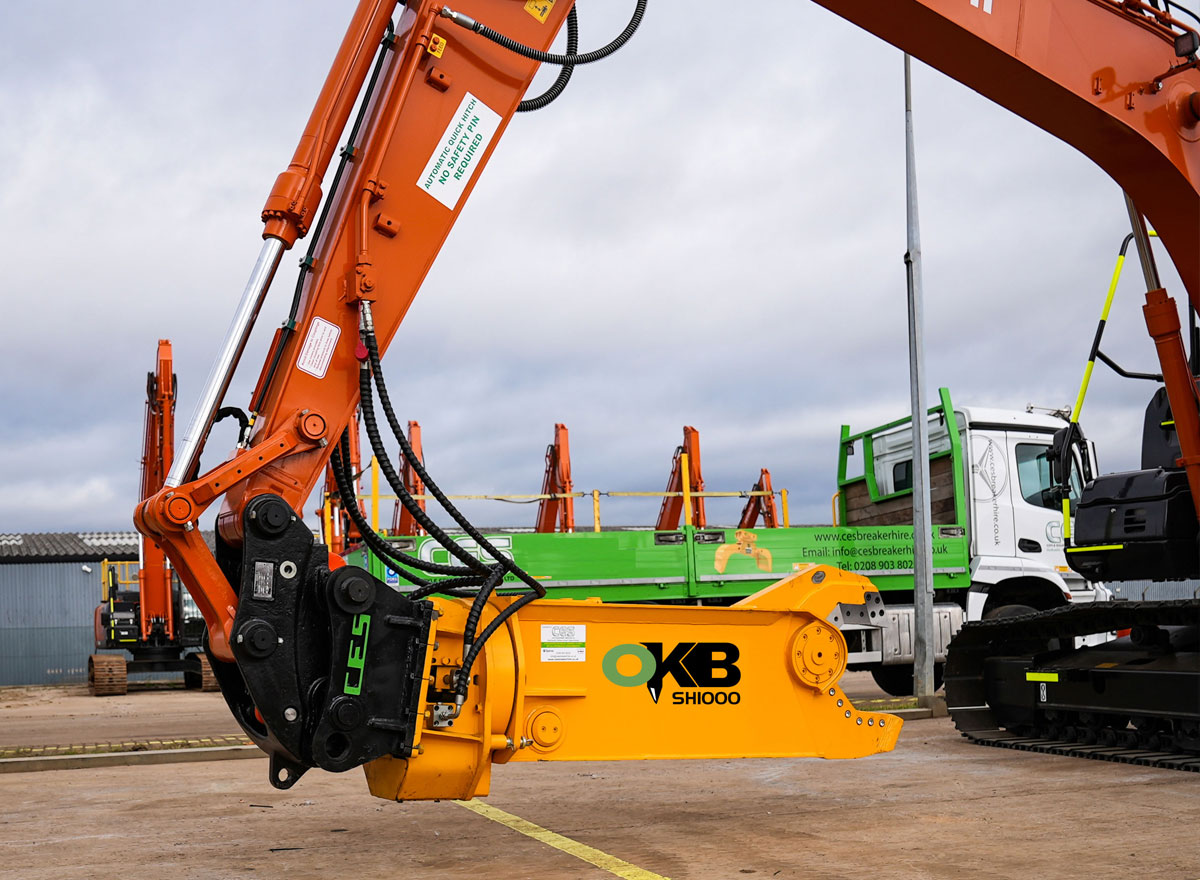

Demolition shears are heavy duty excavator attachments designed for modern industrial demolition projects and for professionals in the recycling of scrap and ferrous materials.
- Purpose built for steel cutting; they are an efficient attachment for demolishing steel structures.
- Weight range from 5T – 55T.
- Hydraulic Rotation.
Applications
- Construction Demolition: Efficiently cut through steel beams and concrete structures for rapid and safe building dismantling.
- Recycling: Process and size scrap metal for recycling, including car dismantling and scrap yard operations.
- Buy
- Demonstrate
- Hire
| Item | Unit | SH350 | SH1000 | SH2500 | SH4000 | SH4500 |
| Excavator weight | T | 5-10 | 12-18 | 18-26 | 30-40 | 40-55 |
| Tool Weight | KG | 600 | 1200 | 2100 | 3200 | 4700 |

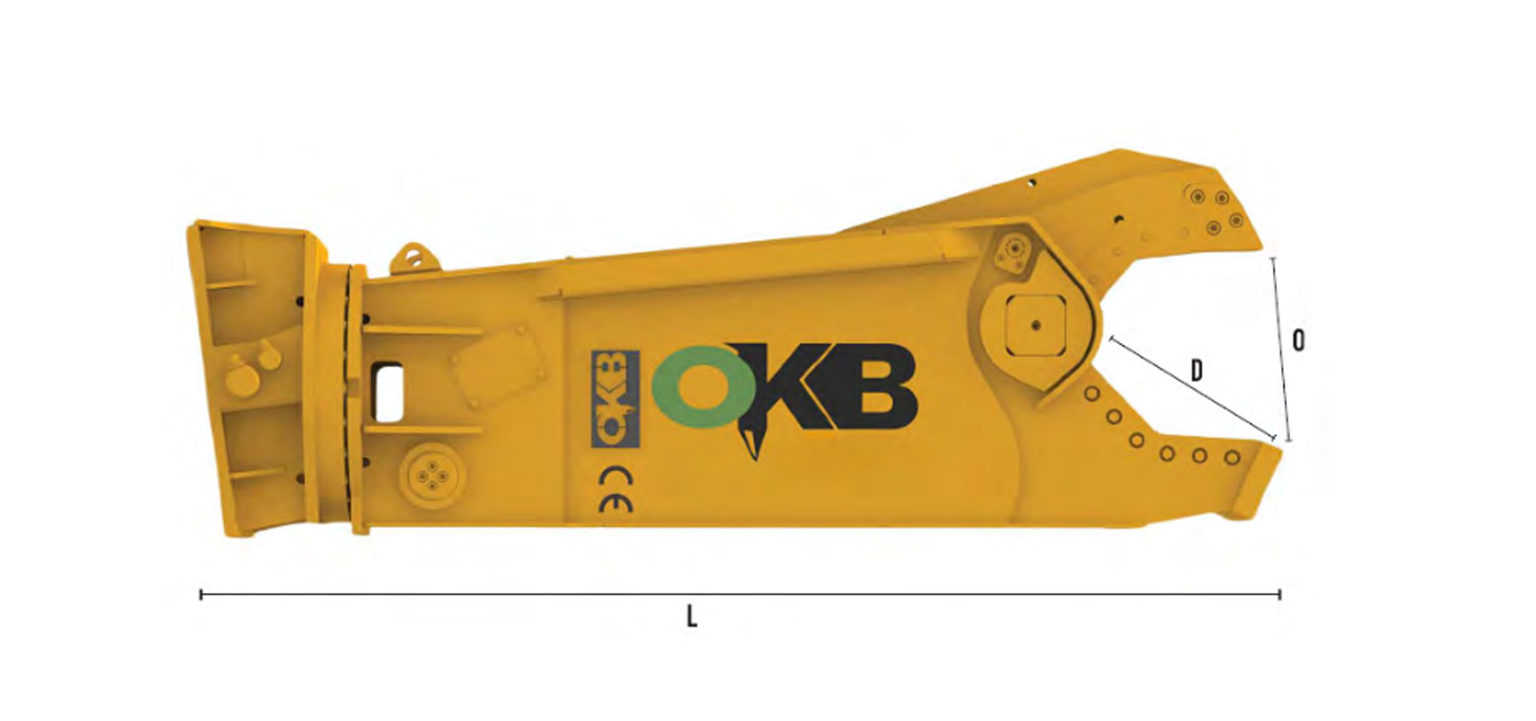

| Total Length (A) | MM | 1810 | 2300 | 2700 | 3150 | 3700 |
| Max Jaw Opening (B) | MM | 340 | 410 | 500 | 580 | 670 |
| Jaws Depth (C) | MM | 350 | 395 | 540 | 630 | 720 |
| Crushing Force (F1) | KN | 390 | 550 | 850 | 1175 | 1535 |
| Crushing Force (F2) | KN | 620 | 950 | 2050 | 2250 | 4555 |
| Max Operating Pressure | BAR | 245 | 350 | 350 | 350 | 350 |
| Oil Flow | L/MIN | 80-100 | 100-150 | 180-250 | 200-300 | 250-300 |
| Max Operating Pressure (Rot) | BAR | 120 | 140 | 160 | 160 | 320-350 |
| Oil Flow (Rot) | L/MIN | 15-25 | 20-30 | 30-45 | 40-50 | 30-40 |
| Shape | Rod | Tube | IPE | HEA | HEB | Plate | L profile | Rail vignola |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model | mm | mm | mm | mm | mm | mm | mm | n.d |
| SH350 | 50 | n.d | n.d | 100 | n.d | 8 | 120*10 | n.d |
| SH1000 | 55 | n.d | 200 | 120 | n.d | 10 | 120*10 | n.d |
| SH2500 | 60 | n.d | 270 | 140 | n.d | 12 | 120*12 | 36 |
| SH4000 | 70 | n.d | 300 | 200 | 450 | 18 | n.d | n.d |
| SH4500 | 90 | n.d | 450 | 320 | n.d | 20 | 200*24 | 36 |
